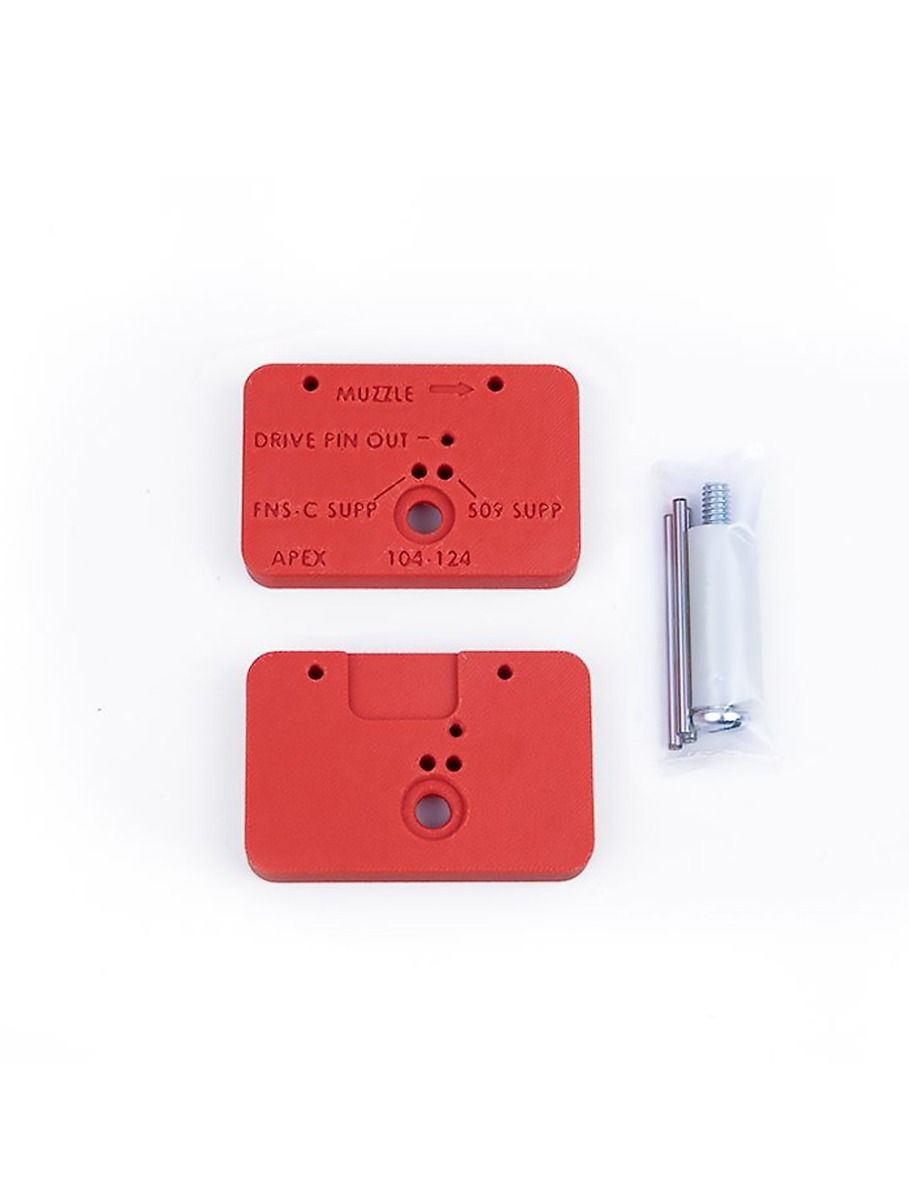

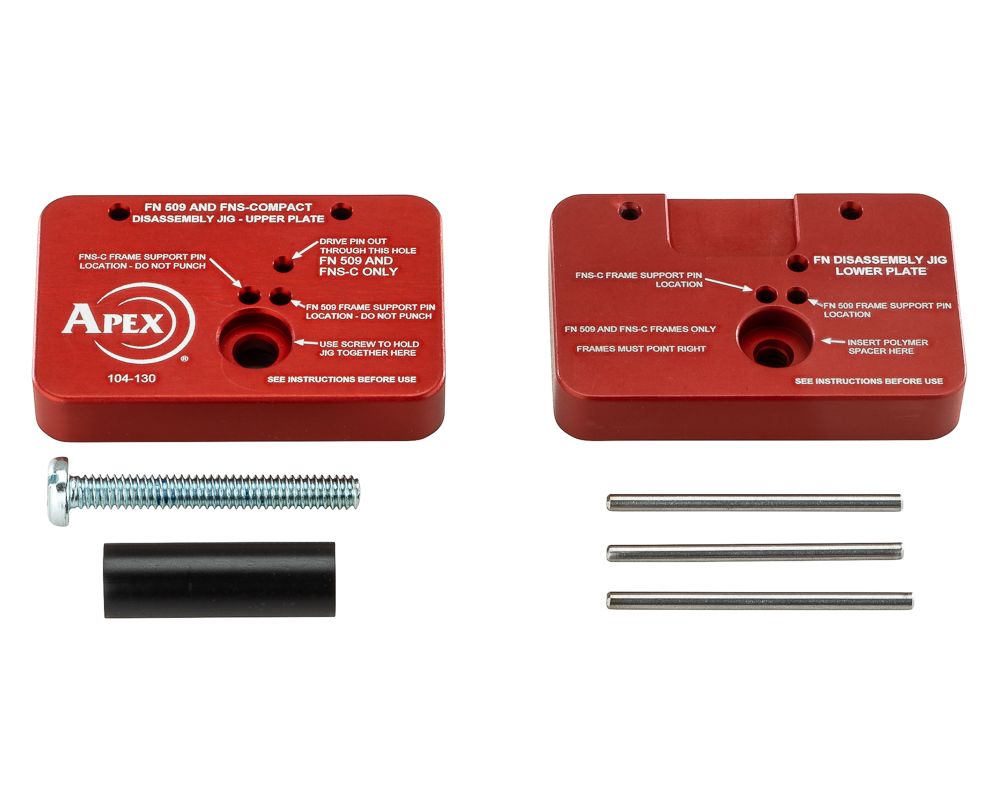

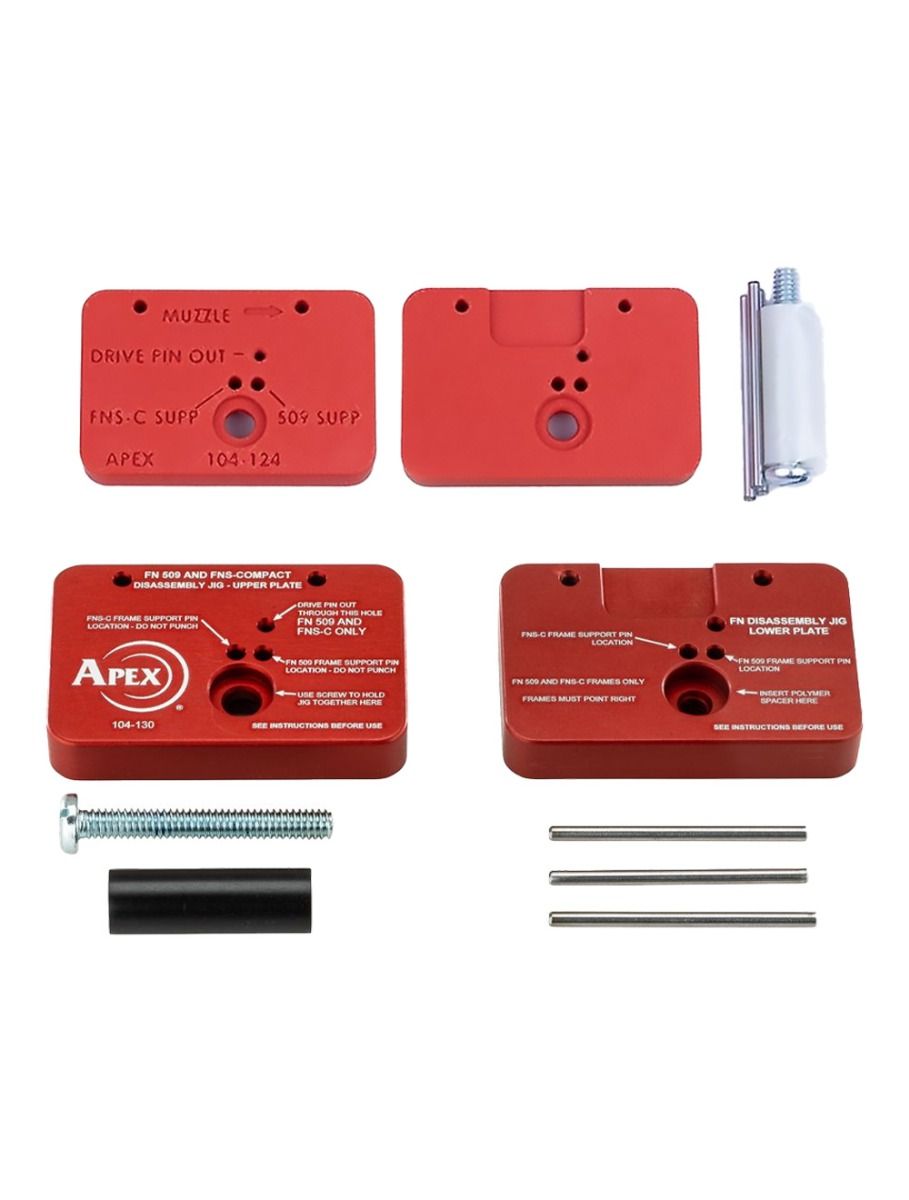

Apex Tactical Disassembly Fixture for FN 509/FNS-C
Apex Tactical Disassembly Fixture for FN 509/FNS-CApex Tactical Disassembly Fixture for FN 509/FNS-C - photo 2 of 4Apex Tactical Disassembly Fixture for FN 509/FNS-C - photo 3 of 4Apex Tactical Disassembly Fixture for FN 509/FNS-C - photo 4 of 4

Specifications

BrandApex Tactical
Part no.104-130-C
ConditionNew
TypeGunsmithing tool

Details as listed for this item. If one detail matters to you, ask us to confirm the exact configuration before you order.

About the Apex Tactical Disassembly Fixture

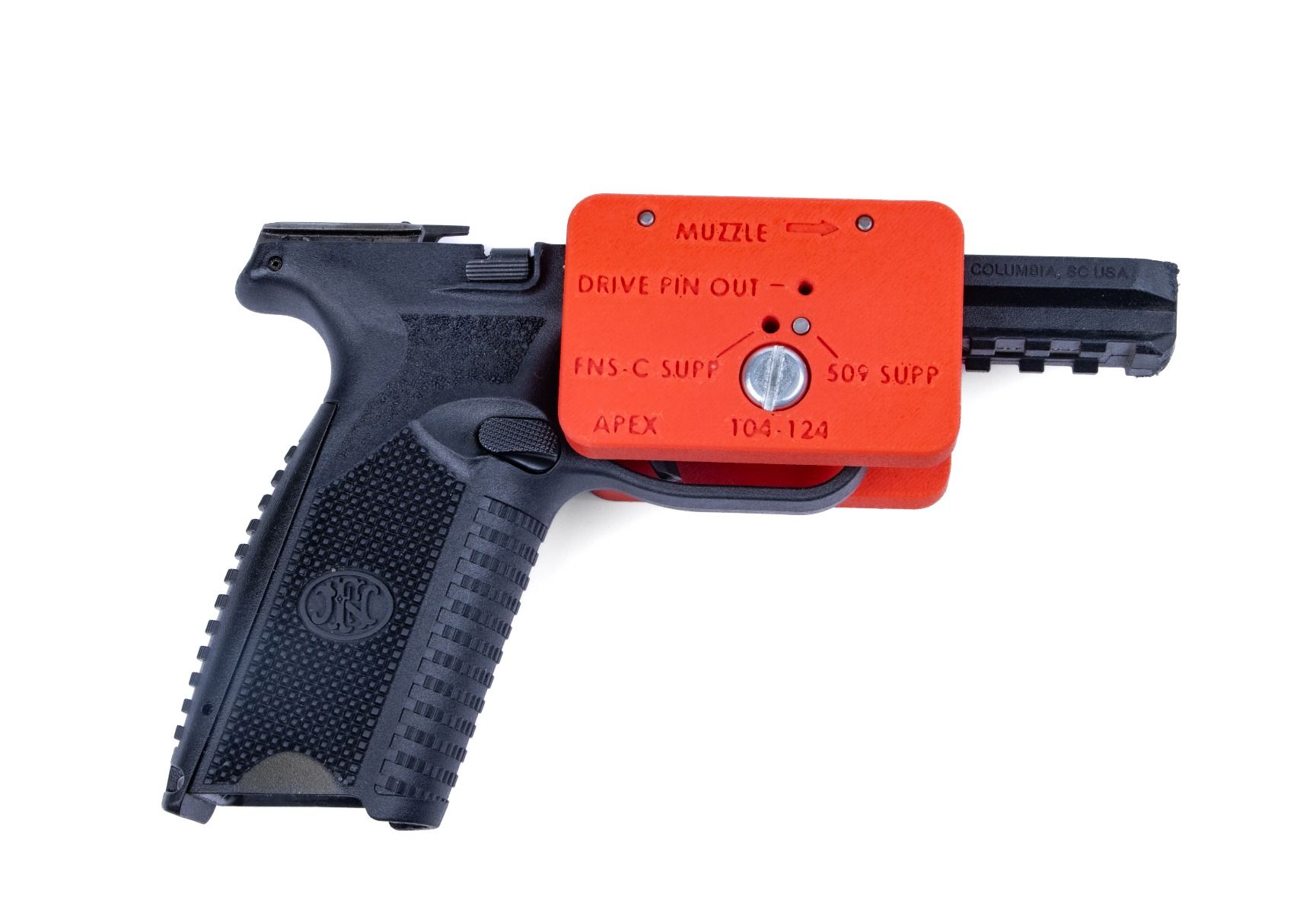

The Apex FN Disassembly Fixture solves the single most frustrating step in maintaining your FN 509 or FNS Compact: removing the unlocking block pin. It is specifically designed to hold the pistol frame securely, guiding a pin punch directly onto the pin while protecting the surrounding polymer. This is not a universal part; it is a dedicated fixture that matches the contours of the frame, so the punch stays on axis and the frame stays put.

Real benefits for your workbench:

  • Precision alignment. The fixture locates the frame so the punch hits the pin square, reducing the risk of slipping and marring the frame or damaging the pin face.
  • Stable hold. Use it on a solid surface—a vise anvil, concrete floor, or a workbench positioned directly over a table leg. It is not designed for flimsy tables or countertops.
  • Time savings. No more fighting with awkward angles or improvised supports. Set the frame, align the punch, and drive the pin out cleanly.
  • Built for California owners. As someone who navigates the roster and magazine limits, you know the value of a tool that protects your investment. This fixture helps you avoid costly frame damage during routine maintenance or aftermarket part installation.

Important fitment and usage notes:

  • Compatible with FN 509 (all variants) and FN FNS Compact pistols. Not for use with other models.
  • Must be used on a solid surface. Kitchen tables, countertops, or hollow-core workbenches will not provide the necessary stability.
  • If the front unlocking block pin has a damaged, mushroomed, or non-flat face from previous attempts, this fixture will not correct that condition. You must dress the pin end flat before using the fixture.
  • 100% Made in the USA, Phoenix, AZ.
  • No guarantee that the fixture prevents all frame damage—pins that are seized or previously damaged require additional attention.

Specs and compatibility: The fixture is machined from steel with a precision-milled pocket that accepts the FN 509 or FNS Compact frame. The top surface provides a flat, stable platform for a punch. Overall weight is minimal, designed to stay put under impact. Works with standard 1/8-inch or 3mm pin punches. The fixture itself measures approximately 3 x 2 x 1 inches.

For the California gun owner who maintains their own firearms, this is a simple, effective tool that eliminates guesswork. It
